Quick Details
- Products Status:Stock
-
- Ports:5-8
-
- Interface Type:USB 3.0
-
- Brand Name:Broway
-
- Model Number:BH163A
-
- Place of Origin:Guangdong, China
-
- Material:plastic+PMMA
-
- Output Parameters:for HDMI1.4 & 4K@30Hz,HDCP,USBA3.0*2 & 5Gbps 2.8A~3A MAX
-
- Working Temperature:0℃~40℃
-
- Input Parameters:SINK 3A MAX/5A/USBC @16PIN/Data + DP signal
-
- Humidity:25%RH.~93%RH.
-
- Cable Summary:20CM
-
- Warranty:12month warranty
-
- Storage humidity range:25% RH~95% RH
-
- Operation humidity range:Less than 75% RH
-
- Certification:FCC
-
Packaging & Delivery
- Selling Units:Single item
-
- Single package size: 13X6.5X2 cm
-
- Single gross weight:0.030 kg
-
-
Package Type: Kraft box
-
- Lead Time:
-
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 7 To be negotiated
Products Description
|
Model No.
|
BH163A
|
|||||
|

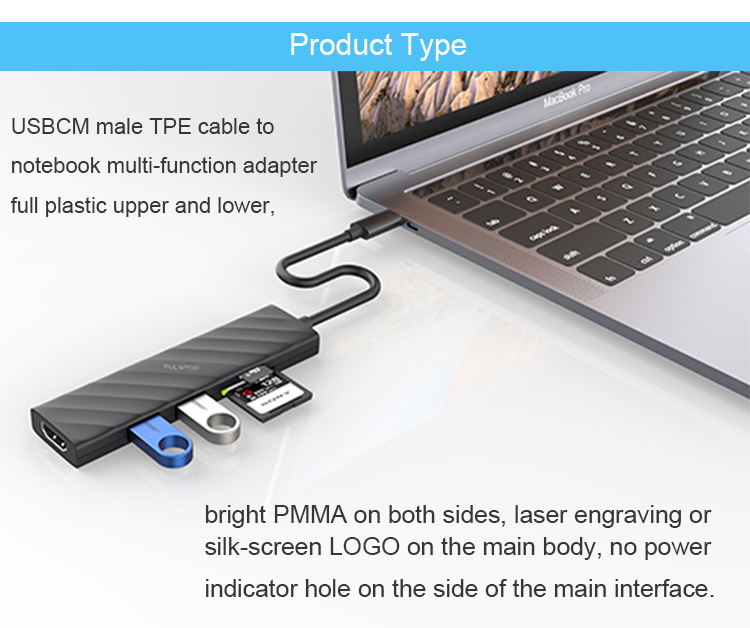

Product Type
|
USB male TPE cable to notebook multi-function adapter, full plastic upper and lower,
shiny PMMA on both sides, laser engraving or silk-screen LOGO on the main body,
no power indicator hole on the side of the main interface.
|
|||||
|

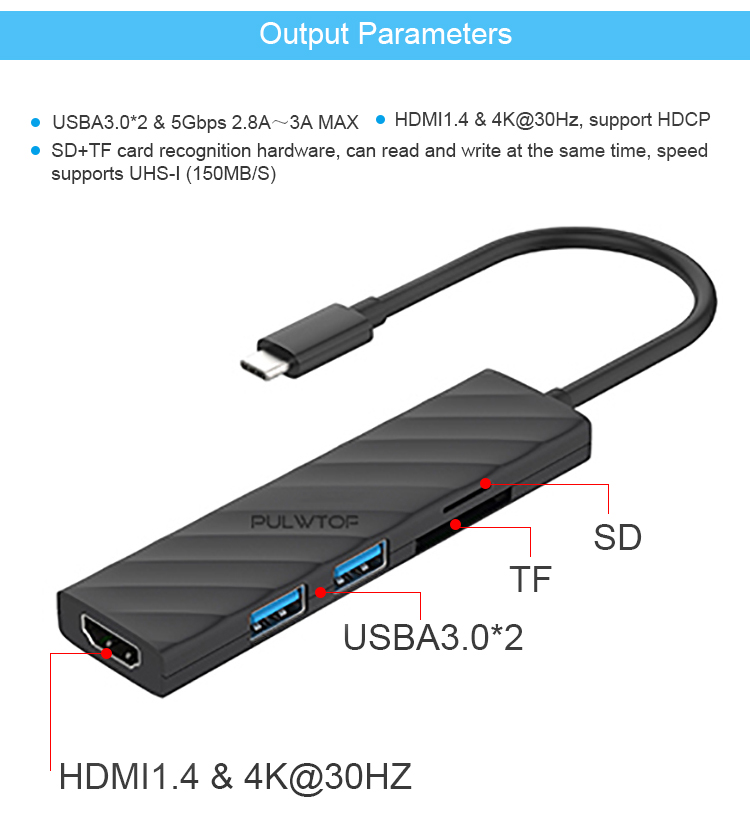

Output Parameters |
1: USBA3.0*2 & 5Gbps 2.8A～3A MAX
2: SD+TF card recognition hardware, can read and write at the same time, speed supports
UHS-I(150MB/S)

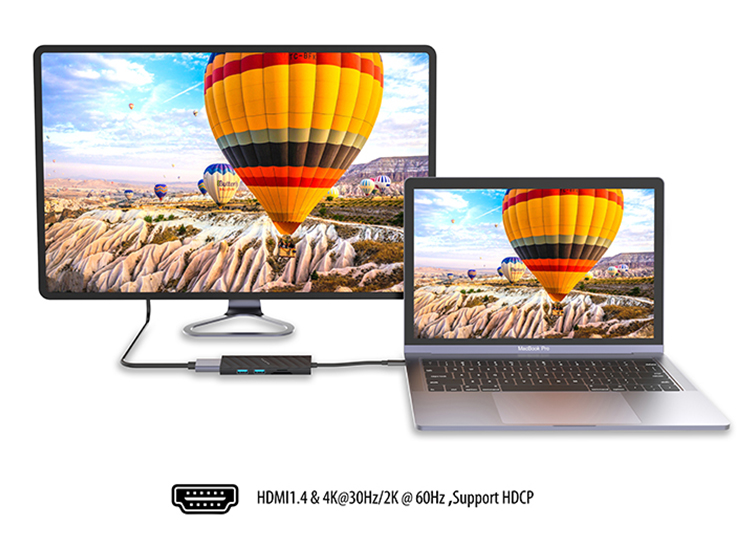

3: for HDMI1.4 & 4K@30Hz, support HDCP
|
|||||
|
Input Parameters
|
1: USB @16PIN all-round type, data + DP signal, 5A, the total length of the line exposed is 15CM.
2:SINK 3A MAX
|
|||||
|

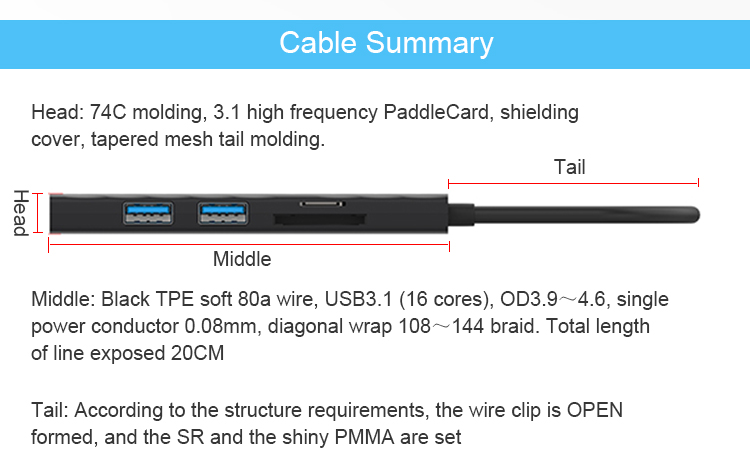

Cable Summary |
Head: 74C molding, 3.1 high frequency PaddleCard, shielding cover,
tapered mesh tail molding.
Medium: Black TPE soft 80a wire,USB3.1 (16 cores),
OD3.9～4.6, single power conductor 0.08mm,
diagonal wrap 108～144 braid. Total length of line exposed 20CM
Tail:According to the structural requirements, the wire clip is OPEN formed,
set with SR and bright PMMA
|
|||||
|
Standby Power
|
<1W
|
|||||
|
Working Temperature |
Room Temperature: 25℃ Full Load: lower than 50℃ |
|||||
|
Humidity Range |
Operation humidity range: Less than 75% RH
Storage humidity range: 25% RH~95% RH
|
|||||
|
Warranty period |
Twelve months limited warranty from date of purchase.
|
|||||
|
PCB Spec
|
1.0～1.2mm 4lay
|
|||||
|
Product size
|
106.5*28*10.8mm
|
|||||
